High Efficiency DMC Cyclone Dust Collector Bag Filter for Mineral Processing

Brand Name : Lipu

Model Number : DMC32

Certification : ISO9001:2008,CE,IQNet

Place of Origin : China

MOQ : 1set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30sets/quarter

Delivery Time : 15-20 days

Packaging Details : Container

Product Name : Dust Collector

Model : DMC32

Total filter area : 24㎡

TFiltering wind speed : 1.04-1.67m/min

Input air : 1500-2400m3/h

Power : 1.5kw

Application : Mineral Processing

Condition : New

Contact Now

High Efficiency DMC Cyclone Dust Collector Bag Filter for Mineral Processing

Description of Cyclone Dust Collector:

DMC dust collector makes the compressed air as driving force for cleaning air, uses pulse injection organization releases the compressed air instantly and induces the severalfold secondary air into the filter bag at high speed to make the bags expand rapidly so as to impact, shake and reverse flow to clean the dust.

The products are a series of products with the filter bag for a set number 12, mainly in 24 bags, 36 bags, 48 bags, 60 bags, 72 bags, 84 bags, 96 bags, 112 bags, 120 bags.

Application of Cyclone Dust Collector:

It is widely used to collect dust in grinder, crusher, packing machine, silo top, matching materials of cement industry. It can clean not only air with common dust, but air with high density (even 1300g/Nm³), so it can collect final product of vertical mill and 0-sepa separator. It can be also widely used in grain, light industry, electric power, chemical industry, metallurgy, etc.

Futures of Cyclone Dust Collector:

1) High purification efficiency, ability to handle large gas

2) Stable performance, long service life

3) Convenient operation and maintenance

4) Suitable for dust removing of a variety of multiple points of dust producing

Technical Parameters:

Model

Total filter area

(m2)

Filtering wind speed(m/min)

Input air (m3/h)

Qty of filter bag(pc)

Specification of filter bag (mm)

Air consum-ption(m³/h)

Density

of inlet

(g/Nm3)

Density

of outlet

(mg/Nm3)

Power

(kW)

Weight(t)

DMC

(A)

DMC

(B)

DMC32

24

1.04-1.67

1500-2400

32

Φ120x2000

0.032

≤200

≤50

1.5

1.4

1.3

DMC48

36

1.15-1.62

2500-3500

48

Φ120x2000

0.048

≤200

≤50

2.2

1.7

1.5

DMC64

48

1.21-1.74

3500-5000

64

Φ120x2000

0.064

≤200

≤50

3

1.9

1.7

DMC80

60

1.25-1.67

4500-6000

80

Φ120x2000

0.08

≤200

≤50

5.5

2.4

2.2

DMC96

72

1.27-1.62

5500-7000

96

Φ120x2000

0.096

≤200

≤50

5.5

2.8

2.6

DMC112

84

1.28-1.68

6500-8500

112

Φ120x2000

0.11

≤200

≤50

7.5

3.2

2.9

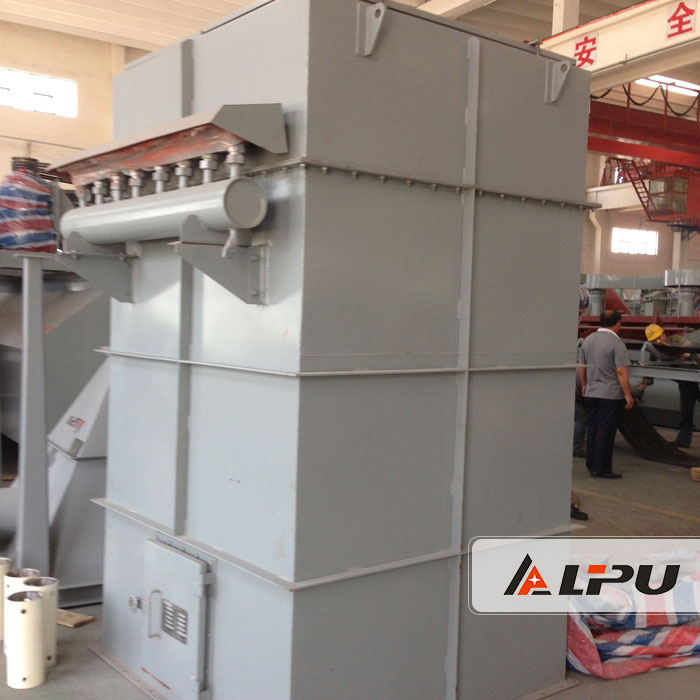

Product Picture Show:
High Efficiency DMC Cyclone Dust Collector Bag Filter for Mineral Processing
